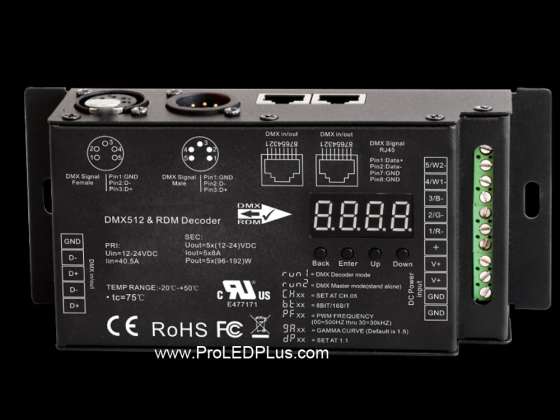

5CH DMX/RDM LED Decoder, 5X8A, 30KHZ, 16 BIT
Select from 1 to 5 Channels
12V capacity 960 Watts, 24V is 480 Watts
PWM output resolution 8 bits or 16 bits
PWM frequency from 500HZ to 30K HZ
Metal housing with 5 years warranty, reliable safety.
RJ45 PLUG, XLR PLUG, SCREW terminal
RGB+ CCT channel control
Professional Quality Design & Manufactoring
Compatible with different DMX master controllers from other companies.
Select between 16 bits / 8 bits.
TUV CE / UL certified.
The most advanced DMX decoder on the market, specifically geared towards filmmaking. This flexible dimmer gives you full control over the PWM frequency, allowing for up to 30K HZ setting for high speed shoots. The dim curve can be adjusted to match those of other lights being used on set. This compact LED dimmer has an LED screen for switching DMX channels or channel outputs. Ideally suited for single color, hybrid, RGB or RGB+X LED ribbon.
This decoder can run in stand-alone mode using address code buttons, under DMX512 digital control signals using XLR-5 or RJ45 DMX512 input/output interfaces, or in RDM mode using a device or computer with RDM software. The DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console with 8-bit or 16-bit gray scale output per channel. RDM mode allows 2-way communication between the controller and computer or smart devices. Meets RDM 2009 protocol. Maximum load is 8 amps per channel.
